SMT Assembly
Precision SMT PCB Assembly Services
High-speed, high-accuracy surface mount assembly for prototypes and mass production. Handling everything from 01005 components to complex BGA with 100% AOI inspection.
Ultra-Fina Pitch
Support for BGA, QFN, and 01005 parts.
High Speed
State-of-the-art pick-and-place lines.
Full Turnkey
We source, we build, we test, you grow.
SMT PCB Assembly Process Showcase

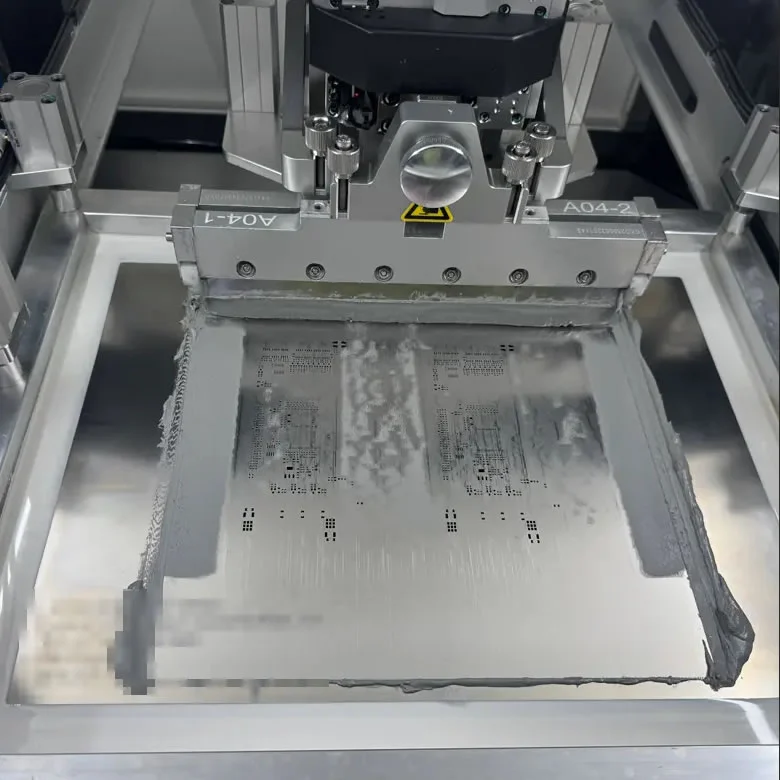

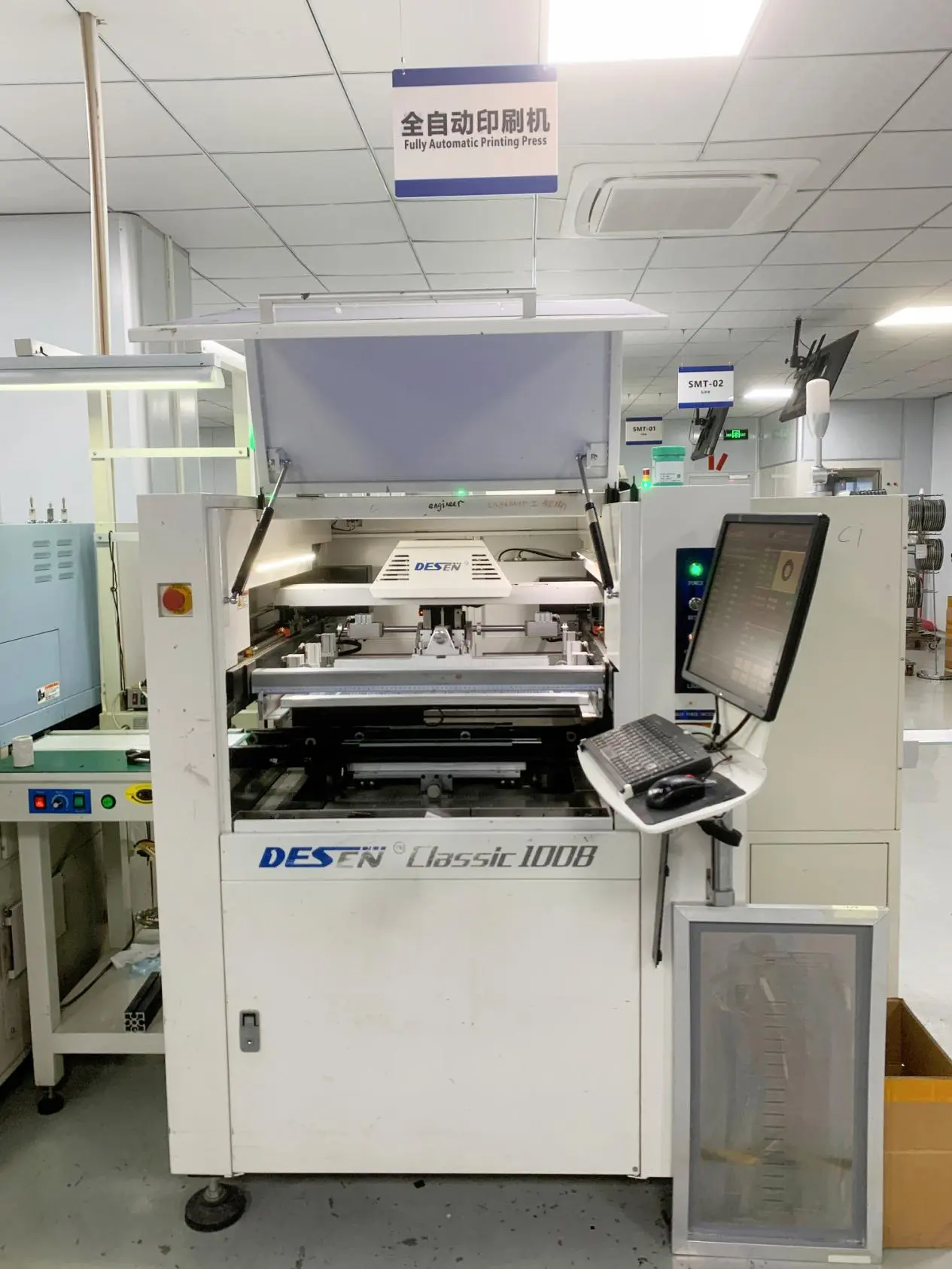

Solder Paste Printing

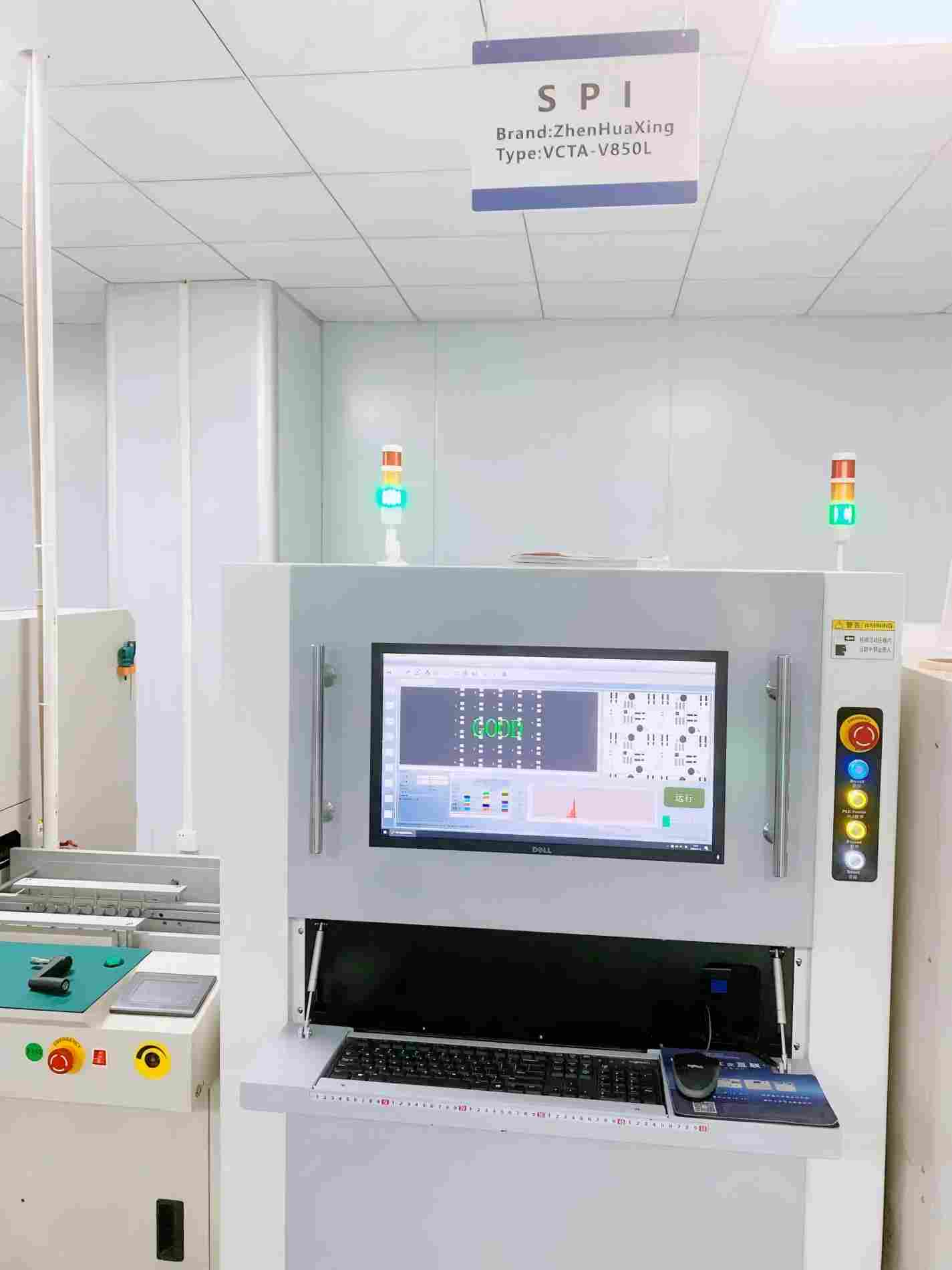

Using high-precision stencils and SPI (Solder Paste Inspection) to ensure a perfect foundation.

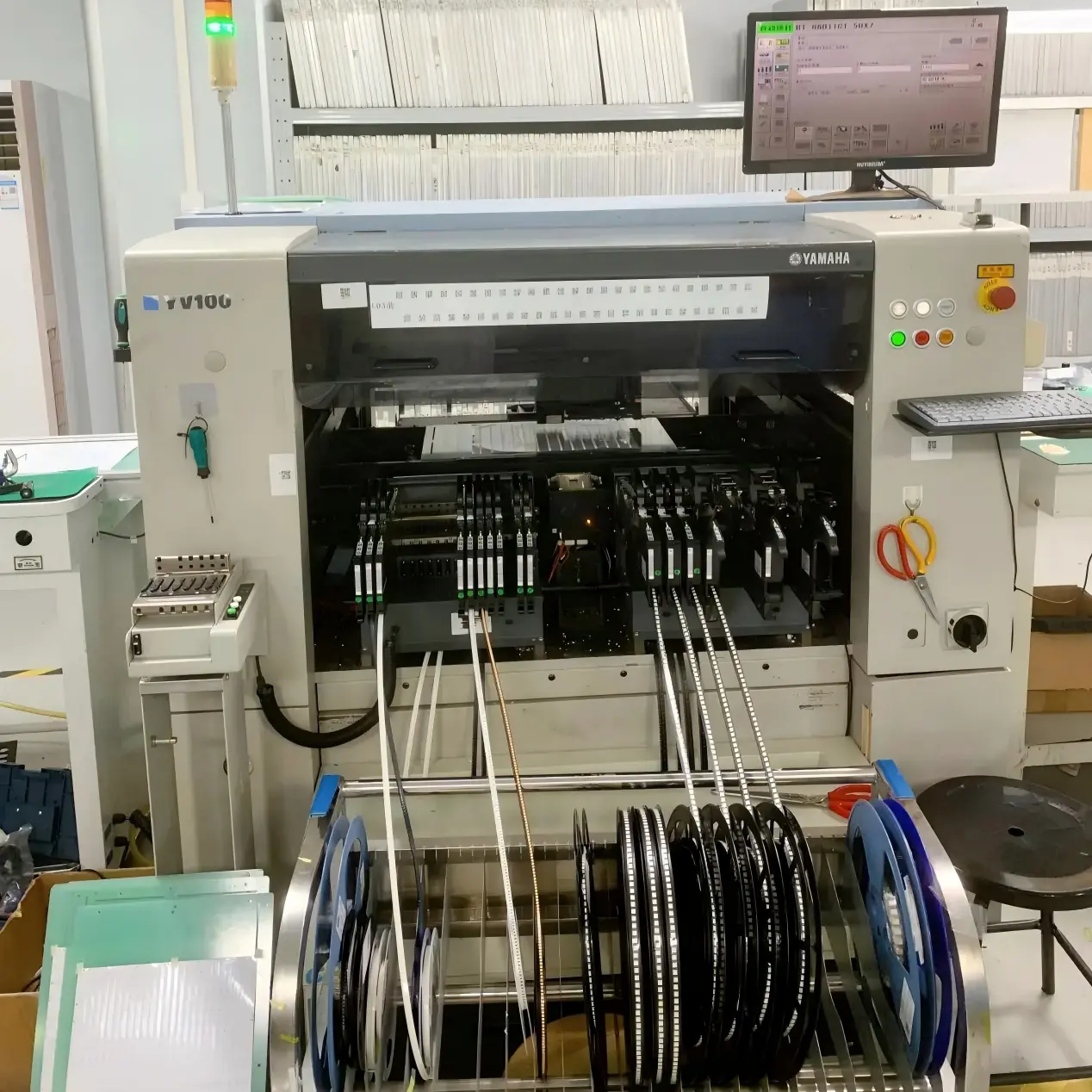

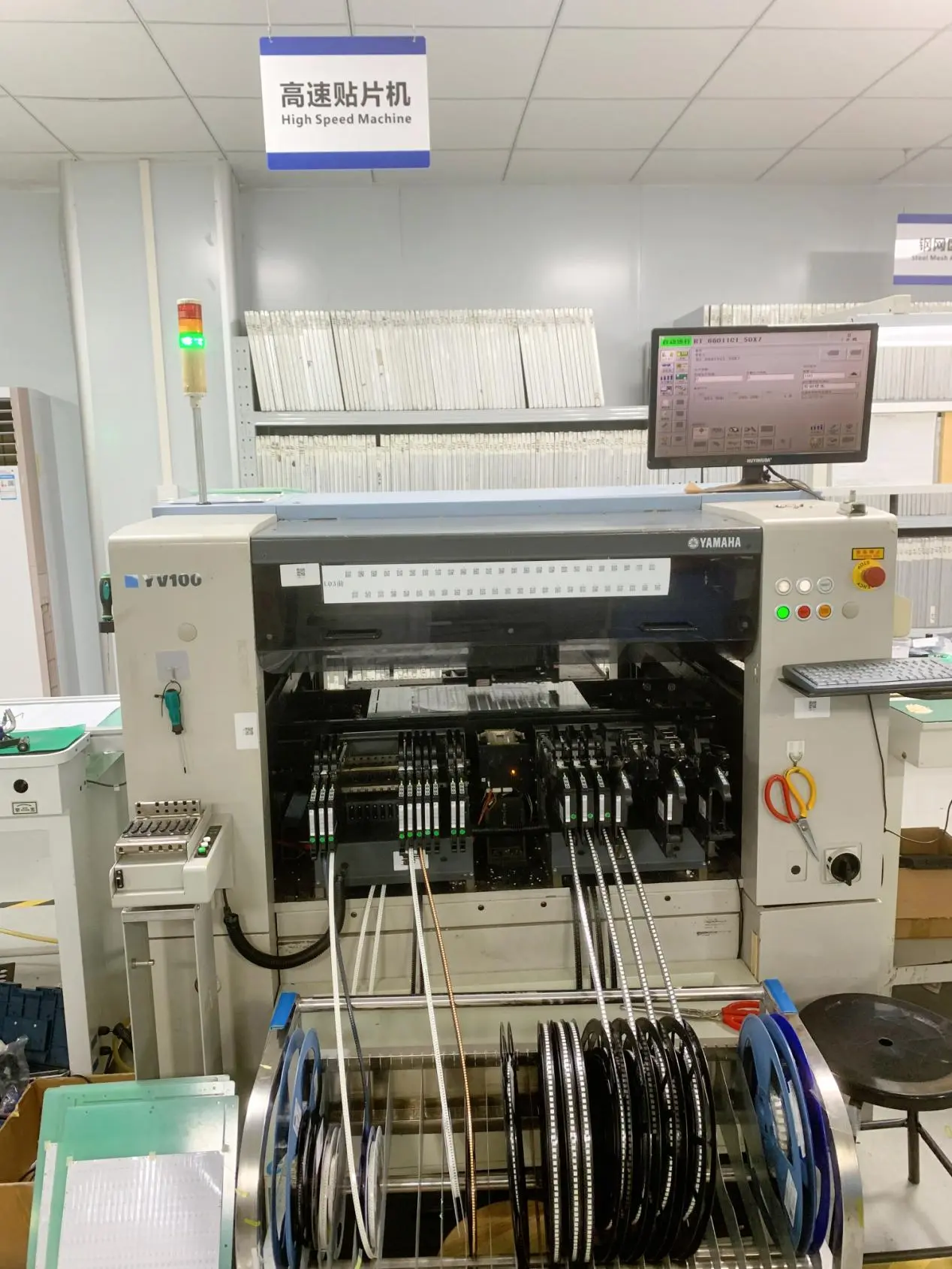

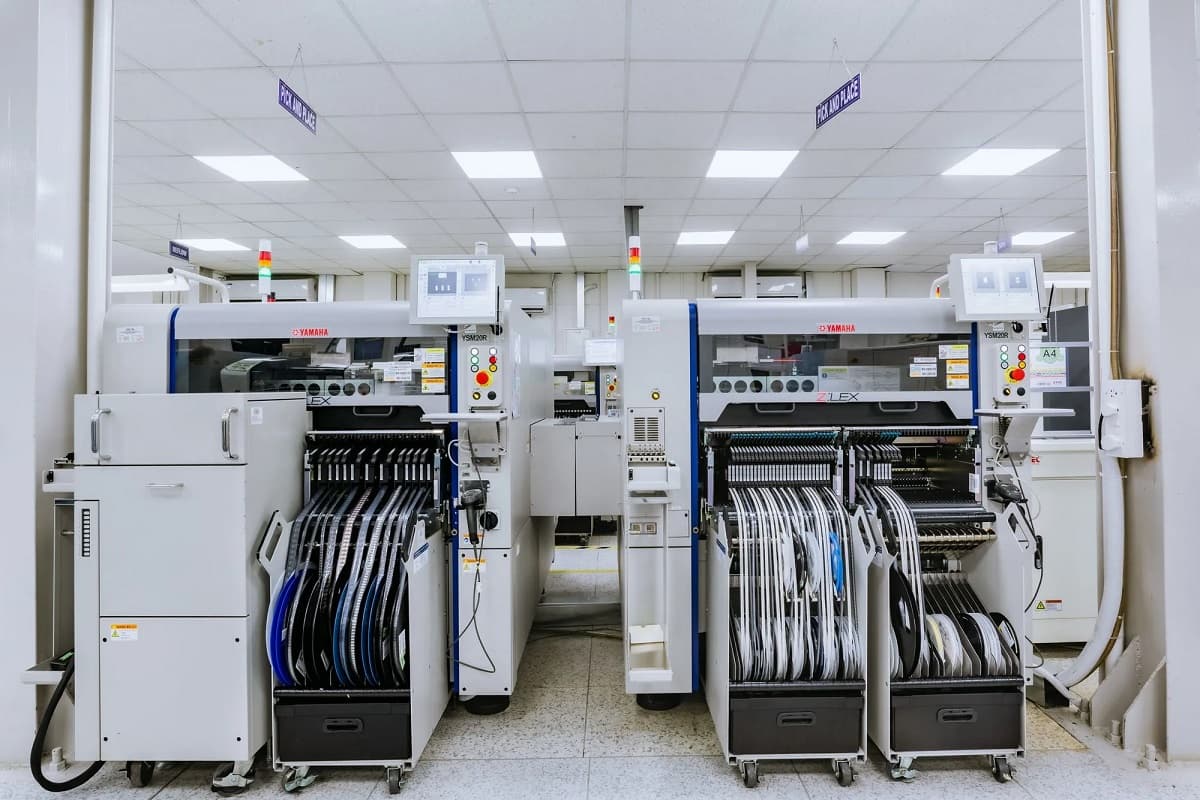

High-Speed Pick & Place
Automated machines placing components with micron-level accuracy.

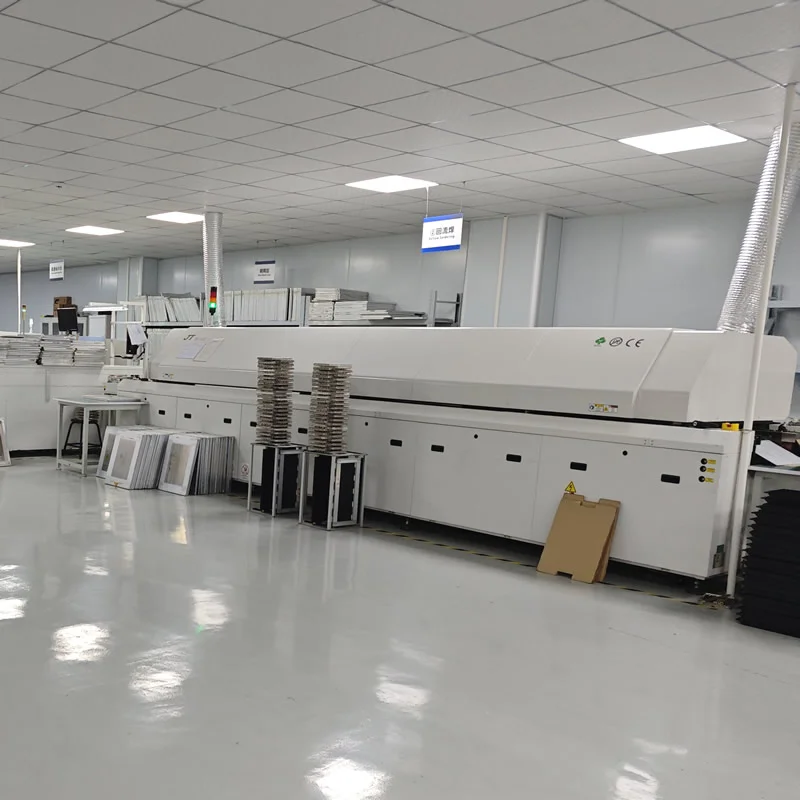

Reflow Soldering
Optimized thermal profiling to ensure strong, reliable solder joints without damaging sensitive parts.

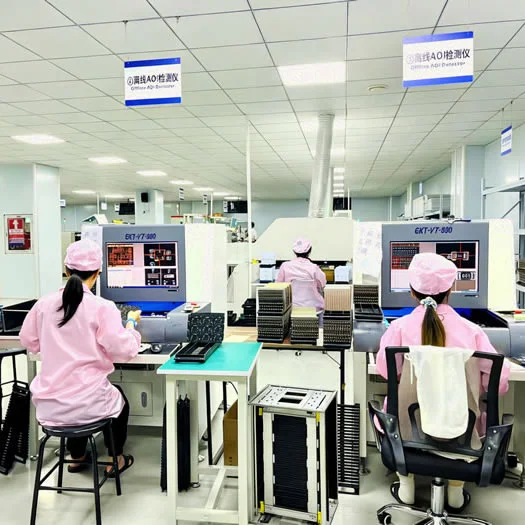

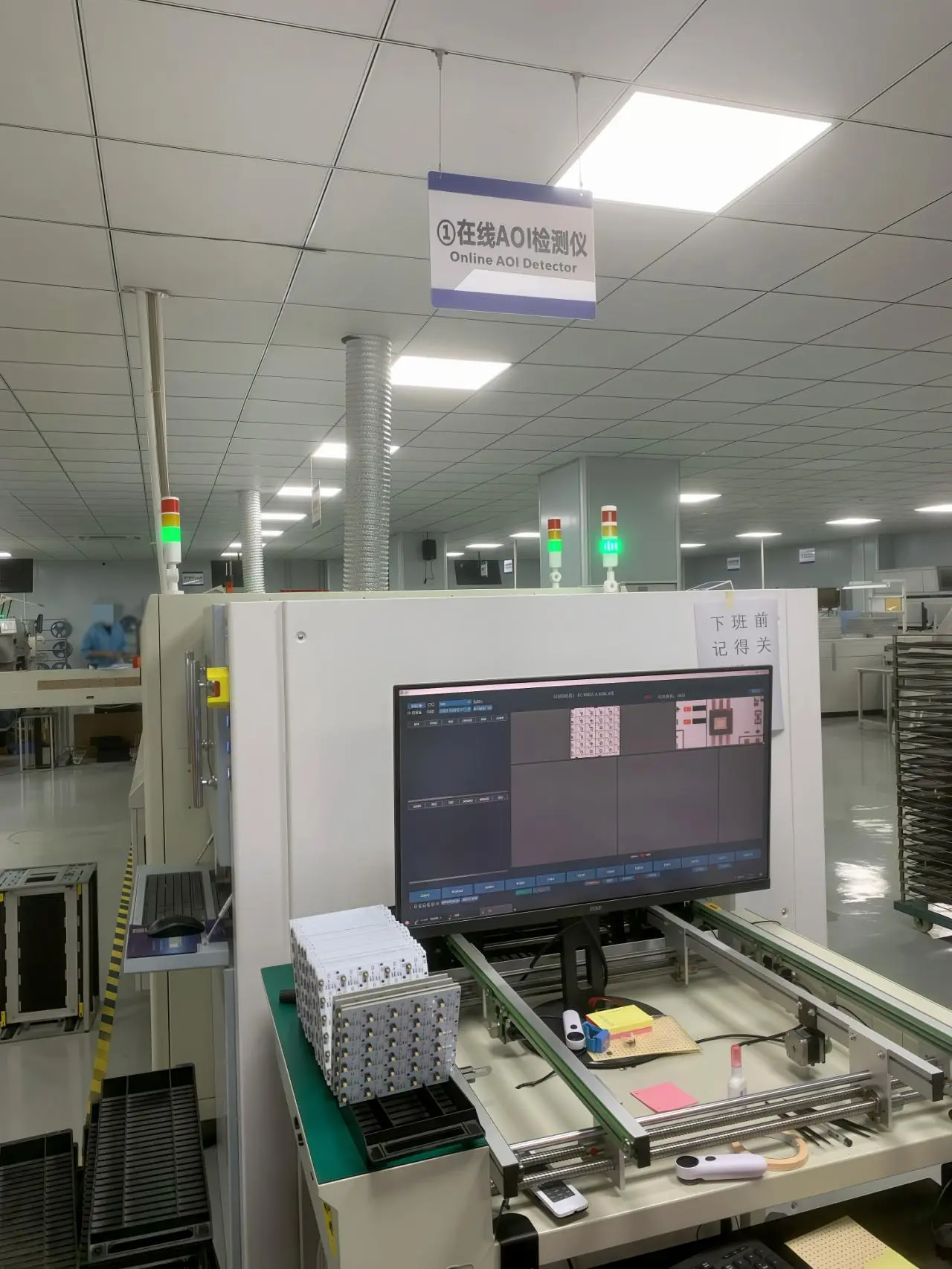

AOI & X-Ray Testing
100% Automated Optical Inspection and 3D X-Ray for BGA/hidden joints.
Why Choose Our SMT Services?
01005 Ready：We are equipped with advanced machinery to handle ultra-miniature components，ideal for wearable technology and miniaturized medical devices.
BGA Expertise: We offer professional BGA reballing and rework services, supported by 3D X-Ray inspection to ensure the integrity of hidden solder joints.
Component Integrity: Our strict ESD (Electrostatic Discharge) management and moisture-control protocols ensure all components remain in optimal condition prior to placement.
Rigorous Quality Control: A comprehensive inspection suite featuring SPI (Solder Paste Inspection) + AOI (Automated Optical Inspection) + X-Ray Inspection + FCT (Functional Testing).
Technical Specifications
Min. Component Size：01005，0201，0402
Fine Pitch Parts：BGA，Micro-BGA，QFN，CSP，PoP（Package on Package）
BGA Pitch：Down to 0.3mm
Max. Board Size：500mm*450mm（Can be adjusted according to actual circumstances）
Mounting Speed：50,000+CPH（Chips Per Hour）
Compliance：IPC-A-610 Class 2 & Class 3

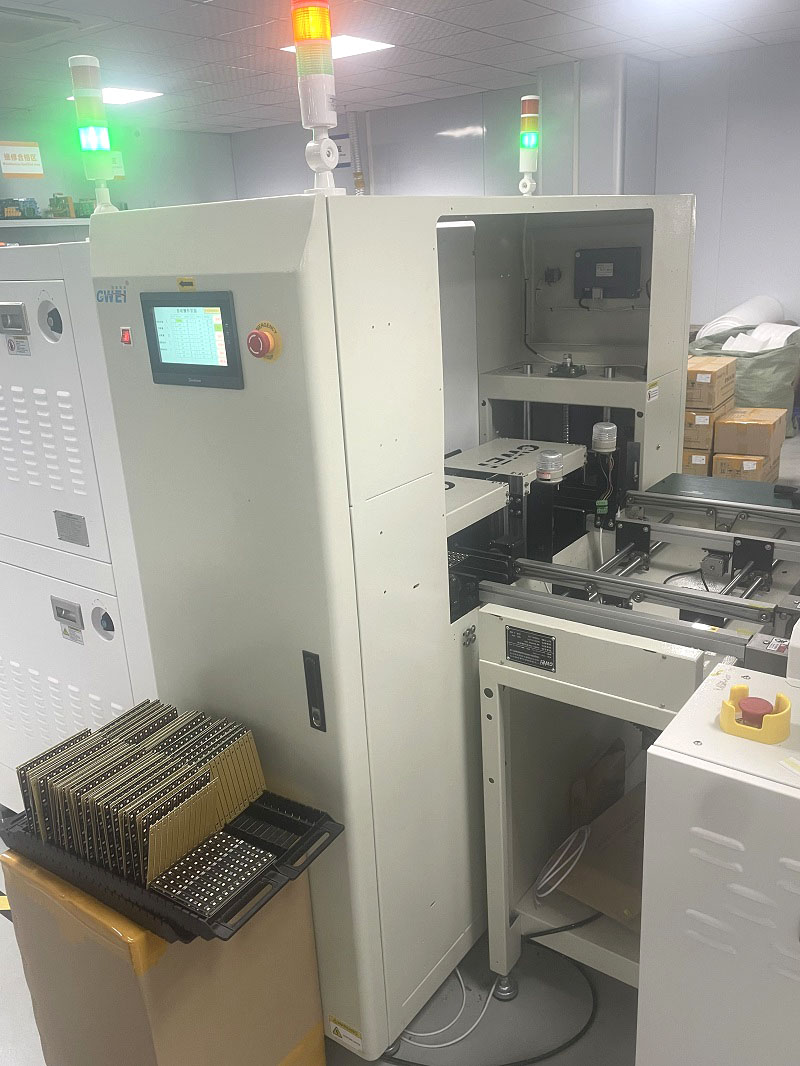

Production Equipment
Ready to Start Your SMT Assembly Project?
👉Get a quick quote within 24 hours.
Upload your Gerber files and specifications. Our engineering team will review your design and provide a competitive quotation for prototype or production quantities.
✔ NDA Available ✔ Fast Quotation Within 24 Hours ✔ ISO Certified Factory ✔ One-stop PCB & PCBA Service
