Precision SMT PCB Assembly Services
High-speed, high-accuracy surface mount assembly for prototypes and mass production. Handling everything from 01005 components to complex BGA with 100% AOI inspection.
Support for BGA, QFN, and 01005 parts.
State-of-the-art pick-and-place lines.
We source, we build, we test, you grow.
SMT PCB Assembly Process Showcase

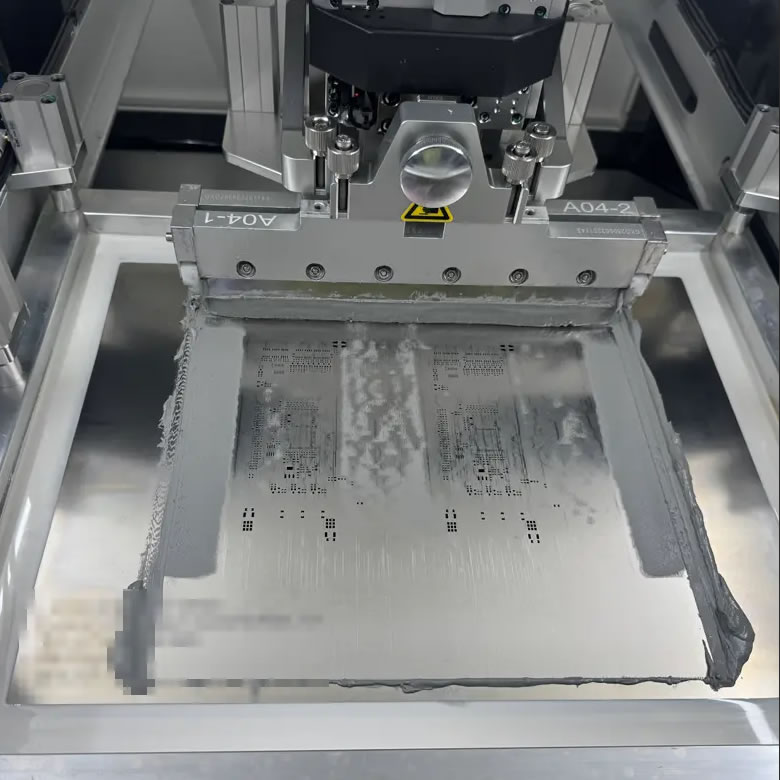

Solder Paste Printing
Using high-precision stencils and SPI (Solder Paste Inspection) to ensure a perfect foundation.
Reflow Soldering
Optimized thermal profiling to ensure strong, reliable solder joints without damaging sensitive parts.
High-Speed Pick & Place
Automated machines placing components with micron-level accuracy.

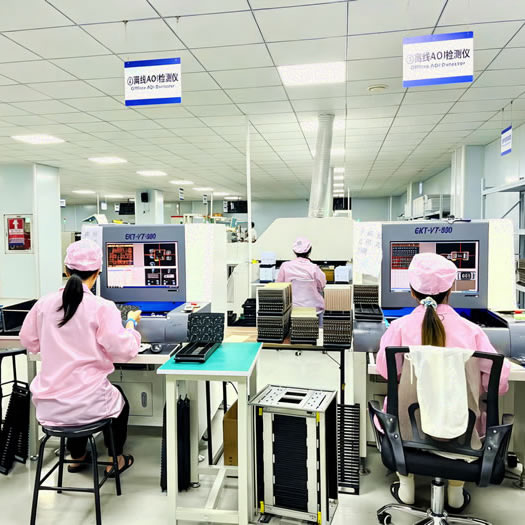

AOI & X-Ray Testing
100% Automated Optical Inspection and 3D X-Ray for BGA/hidden joints.
Why Choose Our SMT Services?
01005 Ready: We are equipped with advanced machinery to handle ultra-miniature components, ideal for wearable technology and miniaturized medical devices.
BGA Expertise: We offer professional BGA reballing and rework services, supported by 3D X-Ray inspection to ensure the integrity of hidden solder joints.
Component Integrity: Our strict ESD (Electrostatic Discharge) management and moisture-control protocols ensure all components remain in optimal condition prior to placement.
Rigorous Quality Control: A comprehensive inspection suite featuring SPI (Solder Paste Inspection) + AOI (Automated Optical Inspection) + X-Ray Inspection + FCT (Functional Testing).
Technical Specifications
| Feature | SMT Capabilities |
|---|---|
| Min. Component Size | 01005, 0201, 0402 |
| Fine Pitch Parts | BGA, Micro-BGA, QFN, CSP, PoP (Package on Package) |
| BGA Pitch | Down to 0.3mm |
| Max. Board Size | 500mm x 450mm (Can be adjusted according to actual circumstances) |
| Mounting Speed | 50,000+ CPH (Chips Per Hour) |
| Compliance | IPC-A-610 Class 2 & Class 3 |
