Polyurethane Conformal Coating | Chemical & Abrasion Resistant PCBA Protection

Polyurethane conformal coating provides exceptional chemical, solvent, and abrasion resistance for printed circuit board assemblies operating in harsh industrial, automotive, and aerospace environments. Unlike acrylic or silicone, urethane coatings offer a hard, durable film that withstands repeated exposure to fuels, oils, and cleaning agents.

What Is Polyurethane Conformal Coating?

Polyurethane conformal coating (also known as urethane conformal coating) is a protective polymer film applied to printed circuit board assemblies to guard against moisture, dust, chemicals, and mechanical abrasion. The cured coating forms a tough, resilient layer that adheres strongly to a wide range of substrates, including FR-4, ceramic, and flexible materials.

At Tengxinjie, we provide professional polyurethane PCB coating services using automated selective spray systems to ensure consistent thickness and coverage. Our conformal coating polyurethane process is fully compliant with IPC-CC-830 and MIL-I-46058C standards, making it suitable for mission-critical applications where long-term reliability is essential.

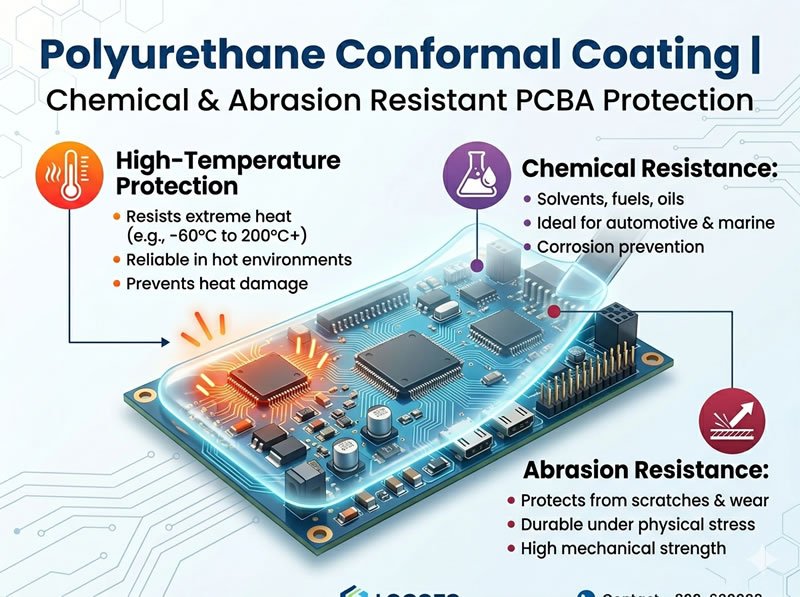

Polyurethane Conformal Coating

Key Benefits of Polyurethane Coating

🧪 Exceptional Chemical Resistance

Polyurethane conformal coating withstands exposure to fuels, hydraulic fluids, solvents, dilute acids, and alkalis. This makes it the preferred choice for automotive under-hood electronics, industrial controls, and aerospace systems.

⚙️ High Abrasion Resistance

The cured urethane film is tough and durable, providing excellent protection against mechanical wear, scratching, and vibration-induced damage during assembly, handling, and field operation.

🌡️ Wide Operating Temperature Range

Urethane conformal coating performs reliably from -40°C to +130°C, with some formulations extending to higher temperatures. It maintains flexibility and adhesion despite thermal cycling.

💧 Superior Moisture & Humidity Protection

Like other conformal coatings, polyurethane PCB coating provides an effective barrier against moisture ingress, preventing corrosion, dendritic growth, and electrical leakage in humid or condensing environments.

Technical Specifications

Parameter	Polyurethane Conformal Coating Capability
Coating Type	Polyurethane (Urethane) – One-part and two-part systems available
Application Methods	Automated selective spray, manual spray, dip coating
Typical Thickness	25 – 75 µm (1 – 3 mils)
Curing Method	Room temperature (24-48 hours) or thermal cure (30-90 minutes at 60-80°C)
Temperature Range	-40°C to +130°C (extended range available with specialized materials)
Dielectric Strength	> 2,000 volts/mil
Compliance	IPC-CC-830, MIL-I-46058C, RoHS
Color	Clear, amber, or pigmented options available

Typical Applications for Polyurethane Conformal Coating

Automotive Electronics

Engine control units (ECUs), transmission controllers, sensors, and battery management systems (BMS) exposed to fuels, oils, and temperature extremes.

Industrial Controls

PLC modules, motor drives, power supplies, and factory automation equipment subject to dust, humidity, and chemical exposure.

Aerospace & Defense

Avionics, navigation systems, and mission-critical electronics requiring proven chemical resistance and long-term reliability.

Outdoor & Marine Electronics

LED lighting controllers, marine navigation, and outdoor communications equipment exposed to salt spray and UV (with appropriate formulation).

Why Choose Tengxinjie for Polyurethane Conformal Coating?

✅ Automated Precision Coating

Our selective robotic coating systems apply conformal coating polyurethane with ±0.5mm accuracy, eliminating overspray and reducing masking requirements.

📋 Full Process Control

Every coated board undergoes 100% UV light inspection and thickness measurement to verify coverage and quality.

🔧 Engineering Support

Our technical team provides material selection guidance, mask design, and DFM recommendations for optimal coating results.

🌍 Global Compliance

All processes comply with IPC-CC-830, RoHS, and REACH. We provide complete documentation for regulatory and customer requirements.

Ready to Protect Your PCBA with Polyurethane Conformal Coating?

Upload your files and specifications. Our engineering team will review your design, recommend the optimal urethane coating system, and provide a detailed quote within 12-24 hours.

Request a Quote →

✔ NDA Available ✔ ISO 9001:2015 ✔ IPC-CC-830 Compliant ✔ Fast Turnaround

Frequently Asked Questions (FAQs)

1. What is polyurethane conformal coating?

Polyurethane conformal coating is a protective polymer film applied to printed circuit boards. Once cured, it provides a tough, durable layer that resists chemicals, solvents, abrasion, moisture, and temperature extremes. It is often specified for harsh environment electronics where acrylic or silicone coatings would not provide sufficient protection.

2. How does urethane conformal coating compare to acrylic and silicone?

Urethane conformal coating offers superior chemical and abrasion resistance compared to acrylic or silicone. Acrylic is easier to rework but has lower chemical resistance. Silicone provides better flexibility and high-temperature stability. Polyurethane is the best choice when the assembly will be exposed to fuels, solvents, oils, or physical wear.

3. Can polyurethane conformal coating be removed for rework?

Yes, but removal is more difficult than with acrylics. Cured polyurethane PCB coating typically requires specialized chemical strippers or microblasting for removal. For designs requiring frequent rework, we recommend selective coating to leave test points and connectors uncoated, or considering acrylic as an alternative.

4. What is the typical curing process for conformal coating polyurethane?

Conformal coating polyurethane can be cured at room temperature (24-48 hours) or accelerated with heat (30-90 minutes at 60-80°C). Thermal curing is commonly used for production volumes to reduce handling time and ensure consistent cross-linking of the polymer for maximum chemical resistance.

5. What standards apply to polyurethane conformal coating?

Our polyurethane conformal coating processes comply with IPC-CC-830 (the industry standard for conformal coating qualification and performance), MIL-I-46058C (legacy military standard), and RoHS. We also support customer-specific requirements for automotive (IATF 16949) and medical (ISO 13485) applications.

6. How thick should polyurethane conformal coating be applied?

For most applications, polyurethane PCB coating should be applied to a thickness of 25-75 microns (1-3 mils) after curing. Thinner coatings reduce mechanical protection; thicker coatings may cause stress or cracking during thermal cycling. Our process includes thickness measurement to ensure compliance with your specifications.

7. Is polyurethane conformal coating suitable for flexible PCBs?

Polyurethane coatings are generally stiffer than silicones and may crack on highly flexible circuits. For flex or rigid-flex PCBAs that will undergo repeated bending, silicone conformal coating is typically a better choice. However, for static flex applications or boards with minimal flexing, urethane conformal coating can be used successfully.

8. Can polyurethane coating be applied over other coatings or components?

Yes, but surface preparation is critical. Polyurethane conformal coating requires a clean, dry, and contaminant-free surface for proper adhesion. In rework scenarios, existing coating must be fully removed before applying urethane to prevent delamination. Our engineers can assess your specific assembly and recommend the appropriate process.

9. What is the lead time for polyurethane conformal coating services?

Lead time depends on order volume and curing requirements. For prototype quantities (1-50 boards), typical turnaround is 3-5 business days. For production volumes, we work with your schedule to ensure timely delivery. Rush service is available upon request.

10. How do I get a quote for polyurethane PCB coating?

To receive a quote for polyurethane PCB coating, please upload your Gerber files, assembly drawings, and coating specifications (including areas to mask, required thickness, and any material preferences). Our engineering team will review your requirements and provide a detailed quotation within 12-24 hours.
