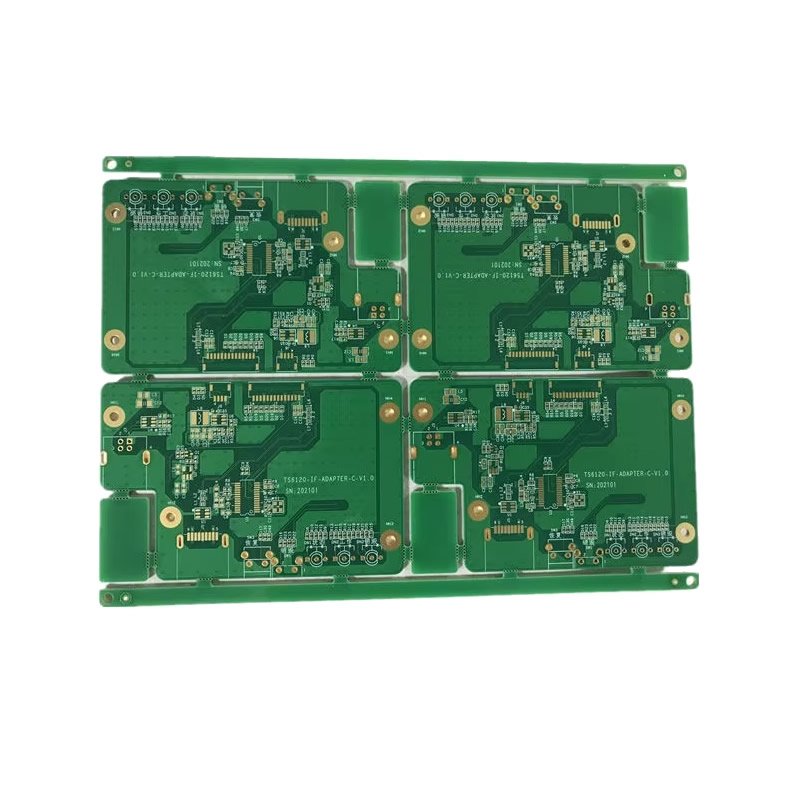

Industrial Control FR4 PCB – Reliable 24/7 Operation
Industrial control systems – from PLCs (Programmable Logic Controllers) and HMIs (Human-Machine Interfaces) to motor drives, robotics, and factory automation equipment – operate in harsh environments and run continuously for years without shutdown. A PCB failure in an industrial setting can bring an entire production line to a halt, costing thousands of dollars per hour.
The Industrial Control FR4 PCB is engineered for maximum reliability in demanding industrial environments, with robust design, noise immunity, and 24/7 duty cycle capability.
What Makes Industrial Control Different?
Industrial applications impose unique requirements that distinguish them from commercial or consumer electronics:
| Requirement | Typical Industrial Control Specification |
|---|---|
| Duty cycle | Continuous – 24 hours/day, 365 days/year for 5-10+ years |
| Temperature range | -40°C to +85°C (industrial grade) |
| Environmental | Dust, humidity, vibration, chemical exposure |
| Electrical noise | High – motors, VFDs, relays, contactors create EMI |
| Voltage levels | Mixed – 3.3V/5V logic alongside 24V, 110V, 220V, 380V |
| Reliability target | High MTBF (>100,000 hours) – zero unplanned downtime |
| Serviceability | Difficult – often in remote or hazardous locations |
| Product lifecycle | Long – 10-20 years (not 6-24 months like consumer) |
Key Design Features for Industrial Control PCBs
| Feature | Purpose | How We Deliver |
|---|---|---|
| Noise immunity | Survive in high-EMI factory environments | Ground planes, shielding, filtering recommendations |
| Wide temperature operation | Hot factories, cold warehouses | TG 170°C material, Grade 1 temperature rating |
| Heavy copper | Motor drives, power supplies, high current I/O | 2-4 oz copper on power layers |
| Extended creepage | Safety isolation for high voltage | Per IEC 61010 (industrial control equipment) |
| Conformal coating ready | Protection from dust, moisture, chemicals | Design guidelines for coating application |
| Robust connectors | Repeated mating cycles, vibration | Reinforced mounting holes, large pads |
| Test points | Field diagnostics and troubleshooting | Accessible test points for every critical net |
| Long lifecycle support | 10+ year product availability | Material selection for long-term reliability |
Technical Specifications for Industrial Control FR4 PCB
| Parameter | Industrial Grade Capability |
|---|---|
| Layer count | 2 to 12 layers (4-8 layers most common) |
| Base material | High TG FR4 (TG 170°C) – standard |
| Temperature range | -40°C to +85°C (extended: -40°C to +125°C available) |
| Board thickness | 1.0mm – 2.4mm (1.6mm standard) |
| Copper weight | 1 oz – 4 oz (2 oz recommended for power interfaces) |
| Min trace width/spacing | 4 mil / 4 mil (6/6 mil acceptable for many designs) |
| Min drill size | 0.20mm (0.25mm recommended for reliability) |
| Creepage & clearance | Extended per IEC 61010 |
| Surface finish | ENIG (preferred), HASL Lead-Free, Immersion Silver |
| Solder mask | High durability – green, blue, black |
| Silkscreen | White – high contrast for field service |
| Conformal coating | Support for acrylic, silicone, urethane coatings |
Applications for Industrial Control FR4 PCB
| Application | Key Requirements | Typical Layers |
|---|---|---|
| PLC (Programmable Logic Controller) | Noise immunity, long life, mixed voltage | 4-6 layers |
| HMI (Human-Machine Interface) | Display interface, touch processing, connectivity | 4-6 layers |
| Motor drive / VFD | Heavy copper, high voltage isolation, thermal management | 4-8 layers |
| Industrial robot controller | High reliability, EMI hardening, multiple interfaces | 6-8 layers |
| Factory automation sensor | Small form factor, wide temperature, low power | 2-4 layers |
| Power monitoring relay | High voltage creepage, precision analog | 4 layers |
| HVAC controller | Mixed signal, 24VAC input, relay outputs | 2-4 layers |
| CNC controller | High speed motion control, precision, noise immunity | 6-8 layers |
| Industrial UPS | High current, battery management, thermal design | 4-6 layers |
| Process control (flow/pressure/temp) | Precision analog, 4-20mA loops, isolation | 4-6 layers |
Commercial vs. Industrial Grade – Quick Comparison
| Feature | Commercial Grade | Industrial Control FR4 PCB |
|---|---|---|
| Temperature range | 0°C to +70°C | -40°C to +85°C |
| Material TG | TG 130°C-140°C | TG 170°C minimum |
| Duty cycle | Intermittent (hours/day) | 24/7 continuous (years) |
| Expected lifetime | 1-3 years | 5-10+ years |
| EMI protection | Basic | Enhanced – ground planes, shielding |
| Environmental protection | Minimal | Conformal coating ready |
| Inspection | AQL sampling | 100% AOI + enhanced electrical test |
| Traceability | Batch-level | Lot-level with date codes |
| Creepage/clearance | Standard IPC | Extended per IEC 61010 |
| Cost | Baseline | +20-40% |
Noise Immunity for Industrial Environments
Industrial control PCBs must survive in environments with high electrical noise from motors, VFDs, relays, and contactors. We implement multiple noise immunity strategies:
| Noise Source | Mitigation Strategy |
|---|---|
| Conducted EMI (power lines) | Filters, ferrites, isolated power supplies |
| Radiated EMI (motors, VFDs) | Ground planes, shielding cans, twisted pair routing |
| ESD (operator handling) | Guard traces, TVS diodes, spark gaps |
| Relay/contactor switching | Snubber circuits, optoisolators, separate ground domains |
| Crosstalk between signals | Adequate spacing, ground isolation, differential pairs |
Design recommendation: For industrial control PCBs, we recommend separate analog, digital, and power ground domains with single-point connection to prevent ground loops. Our DFM review includes noise immunity recommendations.
High Voltage Safety (Creepage & Clearance)
Industrial control equipment often handles 110V, 220V, or 380V AC/DC. Proper creepage and clearance distances are critical for safety:
| Voltage (RMS/DC) | Pollution Degree 2 | Pollution Degree 3 |
|---|---|---|
| 50V | 0.6mm | 1.2mm |
| 125V | 1.5mm | 2.5mm |
| 250V | 3.0mm | 5.0mm |
| 380V | 5.0mm | 8.0mm |
| 500V | 6.5mm | 10.0mm |
Pollution Degree 2 – Non-conductive dust, occasional condensation (typical control room)
Pollution Degree 3 – Conductive dust or moisture (factory floor)
We review your design for IEC 61010 compliance (safety requirements for electrical equipment for measurement, control, and laboratory use).
Conformal Coating for Environmental Protection
Industrial environments expose PCBs to dust, humidity, chemicals, and condensation. Conformal coating provides critical protection:
| Coating Type | Best For | notes |
|---|---|---|
| Acrylic (AR) | General purpose, easy rework | Most common for industrial |
| Silicone (SR) | Extreme temperatures, flexible | -55°C to +200°C |
| Urethane (UR) | Chemical resistance, moisture | Harder to rework |
We design boards to be conformal coating ready:
No components under large BGAs (coating can’t reach)
Test points accessible for field troubleshooting
Connectors and switches masked or avoided
We offer conformal coating services – specify your requirements when ordering.
Why Manufacture Your Industrial Control FR4 PCB With Us?
| Feature | What You Get for Industrial Applications |
|---|---|
| 24/7 reliability focus | Designed for continuous operation (years, not hours) |
| High TG material standard | TG 170°C included at no extra charge |
| Wide temperature support | -40°C to +85°C standard |
| Noise immunity design support | DFM review with EMI recommendations |
| Heavy copper capability | 2-4 oz for motor and power interfaces |
| Conformal coating ready | Design guidelines and application services |
| Extended creepage/clearance | Per IEC 61010 industrial safety standard |
| 100% electrical test | Every board tested |
Order Process for Industrial Control PCB
Upload your Gerber files – note industrial application
Receive DFM report with noise immunity and creepage recommendations
Material confirmation – TG 170°C, heavy copper if needed
Fabrication – with enhanced process controls
100% electrical test – including high voltage isolation (if applicable)
Optional conformal coating – acrylic, silicone, or urethane
Secure shipping with full traceability documentation
