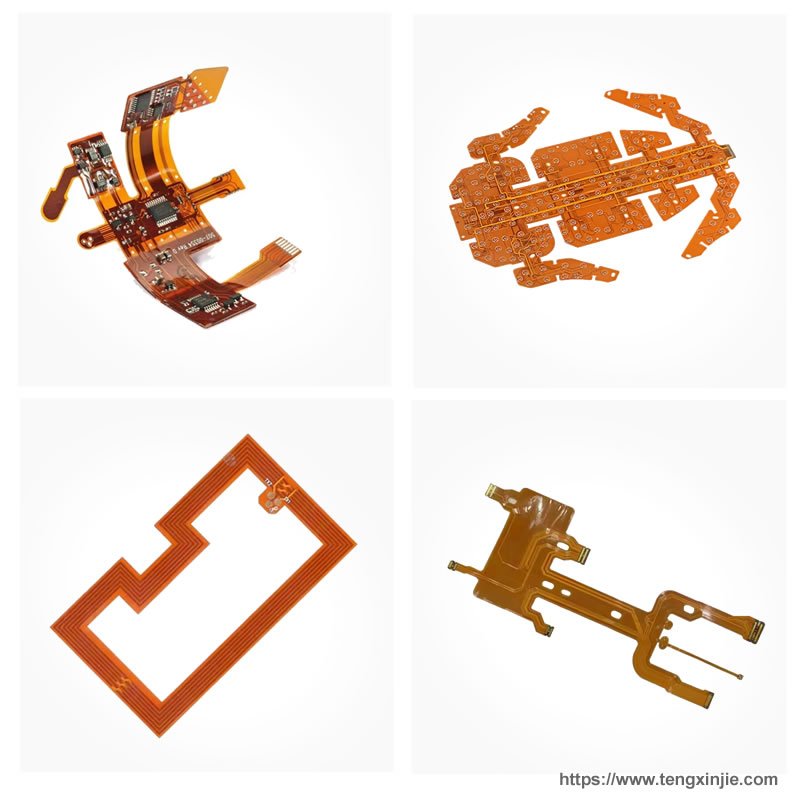

Flexible PCB Prototype – Flex PCB Prototyping Service

Before committing to mass production, every flexible PCB design needs validation. Will it fit the enclosure? Will it withstand the required bend radius? Are all connections correct?

Our flexible PCB prototyping service is designed for rapid iteration and design validation. With fast turnaround (7-10 days) , low minimum quantities (as few as 5 pieces) , and flex-specific DFM review included, we help you get your design right before scaling to production.

Why Prototype Your Flexible PCB Design?

ReasonBenefit
Validate fitTest if the flex board fits your curved enclosure
Test bend radiusVerify the board bends without cracking
Verify electrical functionConfirm all connections work as designed
Identify design issuesCatch errors before mass production
Test assembly processEnsure stiffeners and components align
Iterate quicklyMake revisions and retest in days, not weeks
Reduce riskAvoid expensive mass production rework

Our Flex PCB Prototyping Service

FeatureWhat You Get
Typical turnaround7-10 working days (express available)
Minimum quantity5 pieces (1-4 pieces on request)
Layer count1 to 6 layers (8 on request)
Board thickness0.1mm to 0.4mm
Copper typeRA copper standard
Min trace/spacing3 mil / 3 mil
StiffenersFR4, polyimide, or metal (optional)
Surface finishENIG (preferred), Immersion Silver, OSP
DFM reviewIncluded – flex-specific check
DocumentationElectrical test report, COC

Prototype Turnaround Options

Service LevelLead Time (working days)Best ForCost Premium
Standard prototype10-12 daysNon-urgent validationBaseline
Quick turn prototype7-8 daysAccelerated development+30-50%
Express prototype5-6 daysCritical deadlines+60-100%
Emergency3-4 daysContact usCustom quote

Flex Prototype vs. Production – Key Differences

AspectPrototype ServiceProduction Service
Typical quantity5-50 pieces500-100,000+ pieces
Turnaround7-10 days12-15 days
DFM reviewIncluded (detailed)Included (standard)
Tooling / panelizationSimplified (may change for production)Optimized for volume
StiffenersAvailableAvailable (cost optimized)
Testing100% electrical (flying probe)100% electrical (fixture or flying probe)
DocumentationCOC + test reportFull traceability + COC + test report
Cost per boardHigher (fixed costs spread thin)Lower (volume pricing)

Typical Flex Prototyping Workflow

StepWhat HappensTime
1. Submit Gerber filesUpload your designMinutes
2. Free DFM reviewFlex-specific check (bend radius, vias, coverlay)24 hours
3. Receive quotationDetailed pricing for prototype quantity24 hours
4. Confirm orderApprove and paySame day
5. Prototype fabricationBuilt to your specifications7-10 days
6. 100% electrical testFlying probe testIncluded
7. Ship to youDHL/FedEx/UPS2-5 days

What We Check in Flex DFM Review

CheckWhy It Matters for Prototypes
Bend radius (≥10x static, ≥30x dynamic)Prevents copper cracking
Vias in bend areasVias crack when bent – flag for removal
Trace direction vs. bend axisTraces perpendicular to bend = less stress
Coverlay coverageCoverlay protects flex – no solder mask
Stiffener placementMust be outside bend areas
Copper type specificationRA copper required for flex
Annular ringPrevents via breakout
Trace width/spacing3/3 mil minimum for flex

Common Flex Prototype Design Issues We Catch

IssueConsequenceOur DFM Alert
Vias in bend areaCracking during flexingRed flag – move vias
Bend radius too tightCopper fatigue, early failureIncrease radius or reduce thickness
Solder mask on flexCracks, poor flexibilityUse coverlay instead
90° trace corners in bendStress concentrationUse 45° or rounded corners
Stiffener crossing bend linePrevents bending, stress pointMove stiffener outside bend area
Missing coverlay openingsPads not accessible for solderingAdd coverlay openings

Applications That Typically Need Flex Prototypes

ApplicationWhy Prototype is Critical
Wearable deviceFit and comfort testing – must conform to body
Medical deviceRegulatory submission – working hardware required
Foldable phoneComplex folding – multiple iterations needed
Laptop hinge designDynamic flexing – test thousands of cycles
Robotic arm cableDynamic flexing – test bend life
Automotive sensorFit in tight housing – verify dimensions
Aerospace harness replacementWeight and fit validation

Prototype to Production – Seamless Transition

StageQuantityLead TimePurpose
Prototype (first article)5-20 pieces7-10 daysDesign validation, fit testing
Pilot run50-200 pieces10-12 daysProcess validation, market testing
Production500-100,000+ pieces12-15 daysMass production, cost optimization

Use the same supplier for all stages – no re-qualification needed.

Why Choose Our Flex PCB Prototyping Service?

FeatureWhat You Get
Fast turnaround7-10 days standard (5-6 day express)
Low minimum quantityAs few as 5 pieces
Free DFM reviewFlex-specific check included
RA copper standardWithstands bending – no upcharge
All layer counts1 to 6 layers (8 on request)
Stiffeners availableFR4, polyimide, metal
Design iteration supportEasy revisions between prototypes
ISO9001 & UL certifiedQuality guaranteed

Order Process for Flex PCB Prototype

  1. Upload Gerber files – specify prototype quantity (5-50 pieces)

  2. Free DFM review – flex-specific check, 24 hours

  3. Receive quotation – prototype pricing

  4. Confirm and pay – production starts

  5. Fabrication – 7-10 days

  6. 100% electrical test – flying probe

  7. Express shipping – DHL/FedEx to your door

First time designing a flexible PCB? We recommend starting with a prototype (5-10 pieces) to validate your design before mass production. Free DFM review included.

Q1: How many pieces can I order for a flex PCB prototype?

A:

QuantityAvailabilityBest For
5-10 piecesYes – most common prototype quantityDesign validation, fit testing
11-20 piecesYesEngineering samples
21-50 piecesYesPilot runs, beta testing
1-4 piecesAvailable on requestVery early validation

We recommend 5-10 pieces for first prototypes – enough for testing, not too many if revisions are needed.


Q2: How fast can I get flex PCB prototypes?

A:

Service LevelLead TimeBest For
Standard10-12 daysNon-urgent validation
Quick turn7-8 daysAccelerated development
Express5-6 daysCritical deadlines
Emergency3-4 days (contact us)Extremely urgent

Add 1-2 days for stiffeners or complex layer counts (6+ layers).


Q3: Do you offer DFM review for flex prototypes?

A: Yes – free DFM review is included with every prototype order.

What We CheckWhy It Matters
Bend radiusPrevents copper cracking
Vias in bend areasVias crack when bent – critical to catch
Coverlay vs solder maskCoverlay required for flex
Stiffener placementMust be outside bend areas
Trace direction relative to bendPerpendicular is best
Copper typeRA copper required

We provide DFM report before you approve – no surprises.


Q4: What is the minimum bend radius for a flex prototype?

A:

Flex ThicknessStatic Bend (one-time)Dynamic Bend (repeated)
0.1mm1mm (10x)3mm (30x)
0.2mm2mm6mm
0.3mm3mm9mm
0.4mm4mm12mm

During DFM review, we verify your bend radius meets these minimums.


Q5: Can I get stiffeners on prototype flex PCBs?

A: Yes – stiffeners are available for prototypes.

Stiffener TypeLead Time Impact
FR4 stiffener (0.1-0.3mm)+1-2 days
Polyimide stiffener (0.05-0.1mm)+1-2 days
Metal stiffener+3-5 days (special order)

Specify stiffener location, material, and thickness when ordering.


Q6: What is the cost difference between prototype and production?

A:

FactorPrototype (5-20 pcs)Production (1,000+ pcs)
Per-board costHigher (fixed costs spread thin)Lower (volume pricing)
Setup / toolingMay be simplifiedOptimized for volume
PanelizationLess optimizedMaximized for efficiency
Total costLower total ($)Higher total ($) but lower per-board

Example: 10 boards might cost 15each(150 total). 1,000 boards might cost 3each(3,000 total).


Q7: Can I revise my design after seeing the prototype?

A: Yes – that’s the purpose of prototyping.

Revision TypeProcess
Minor changes (trace moves, pad size)Update Gerber files, new DFM review (free)
Major changes (layer count, stackup)New quotation, new prototype run
No penalty for revisionsPay only for new boards

We recommend prototyping early and often – catch issues before mass production.


Q8: What testing is done on flex prototypes?

A:

TestStandardOptional
100% electrical test (flying probe)Yes
Visual inspectionYes
Dimension checkYes
Flex continuity after bendingNoYes (upon request)
Impedance testNoYes (for controlled impedance orders)
Bend cycle testNoYes (upon request – additional cost)

For bend testing, specify your cycle requirements when ordering.


Q9: What files do I need to submit for a flex prototype?

A: Required:

File TypeFormat
Gerber filesRS-274-X (extended Gerber) preferred
Drill filesExcellon format
Stackup / layer orderText or drawing

Optional but helpful:

  • Bend radius requirements

  • Stiffener locations (drawing or layer)

  • Coverlay color (yellow, black, white)

  • Surface finish preference

We accept ODB++, IPC-2581, and PCB design files (Altium, Eagle, KiCad, PADS).


Q10: How do I get started with a flex PCB prototype?

A: Simple process:

  1. Export Gerber files from your PCB design software

  2. Upload files to our quote form or email us

  3. Specify prototype quantity (5-10 pieces recommended)

  4. Receive free DFM review within 24 hours

  5. Review and approve DFM report and quote

  6. Receive prototypes in 7-10 days

  7. Test and validate – then revise or proceed to production

New to flexible PCB design? We offer free DFM review and design guidance. Contact us before ordering your first prototype.
